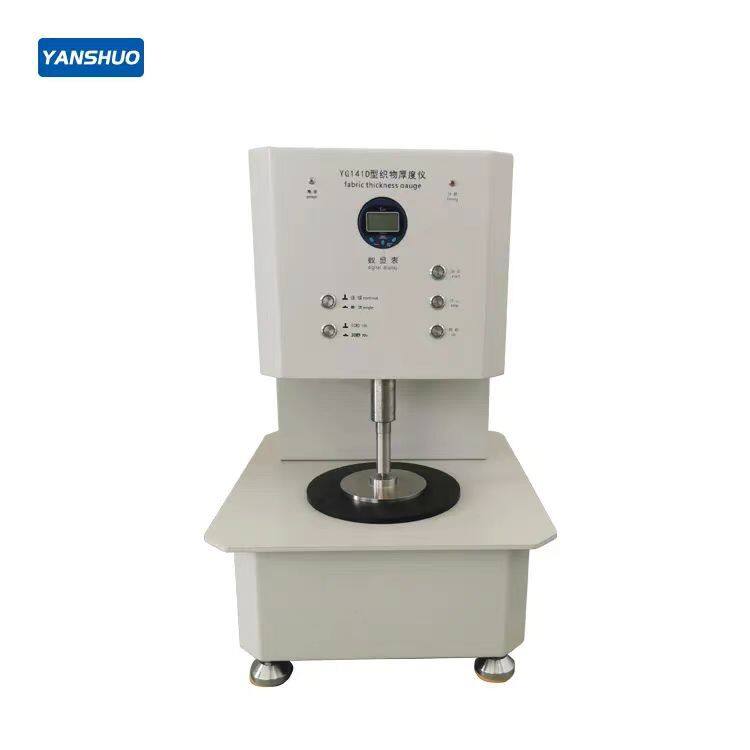

YG141D Digital Fabric Thickness Tester

【Scope of Application】:

Used for thickness determination of various woven fabrics, knitted fabrics, and non-woven fabrics. Basic application for films, sheets, diaphragms Applicable for thickness testing of films, sheets, diaphragms. Applicable for thickness testing of paper, cardboard. Applicable for thickness testing of foils, silicon wafers. Applicable for thickness testing of metal sheets. Applicable for thickness testing of textile materials. Applicable for thickness testing of solid electrical insulators. Applicable for thickness testing of non-woven materials, such as diaper and sanitary napkin sheet materials. Measuring range extended to 5, 10mm Applicable for thickness testing of sheets, plates. Applicable for thickness testing with special requirements.

1.  Used for thickness determination of various woven fabrics, knitted fabrics, and non-woven fabrics.

2.  Basic application for films, sheets, diaphragms Applicable for thickness testing of films, sheets, diaphragms

3.  Applicable for thickness testing of paper, cardboard

4.  Applicable for thickness testing of foils, silicon wafers

5.  Applicable for thickness testing of metal sheets

6.  Applicable for thickness testing of textile materials

7.  Applicable for thickness testing of solid electrical insulators

8.  Applicable for thickness testing of non-woven materials, such as diaper and sanitary napkin sheet materials

9.  Measuring range extended to 5, 10mm Applicable for thickness testing of sheets, plates.

【Method Standards】:

GB/T3820; FZ/T60004; FZ/T60003; ISO5084, 9073; ASTM D1777 etc.

【Product Features】:

1.  Adopts contact measurement method, strictly complies with standard requirements, effectively ensuring test standardization and accuracy.

2.  Contact area and measurement pressure strictly designed according to standards, also supports various non-standard customizations.

3.  The measuring head automatically lifts during testing, effectively avoiding errors caused by human factors.

4.  Supports both automatic and manual measurement modes, convenient for user choice.

5.  Displays real-time measurement results including maximum value, minimum value, average value, and standard deviation for user judgment.

6.  Equipped with standard gauge blocks for system calibration, ensuring test accuracy and data consistency.

【Technical Parameters】:

1.  Thickness measurement range: 0.01mm～25.00mm;

2.  Resolution: 0.01mm;

3.  Presser foot diameter & area:

    Φ11.28mm    Φ50.48mm   Φ56.42mm   Φ112.84mm

    100mm²       2000mm²     2500mm²     10000mm²

4.  Pressure weights: 50cN, 100cN, 200cN, total 3 types;

    50cN weight: 2 pcs    100cN weight: 2 pcs    200cN weight: 1 pc
